Description

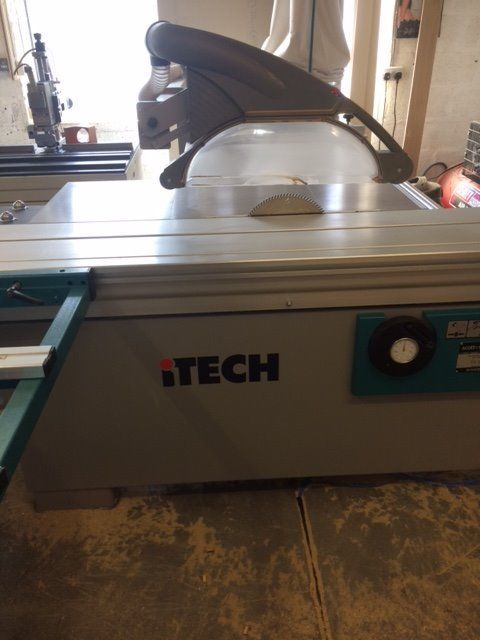

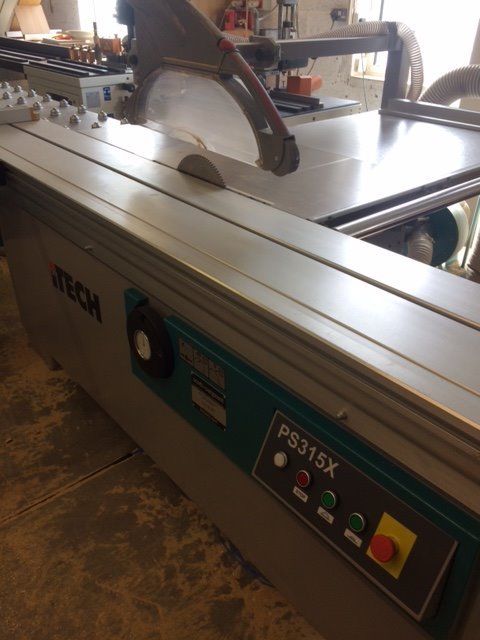

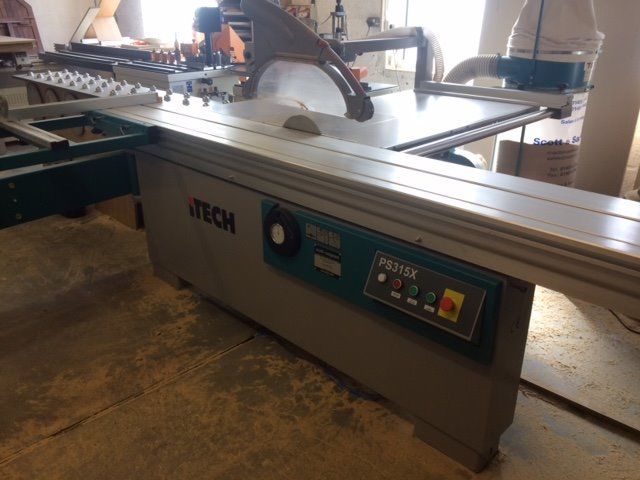

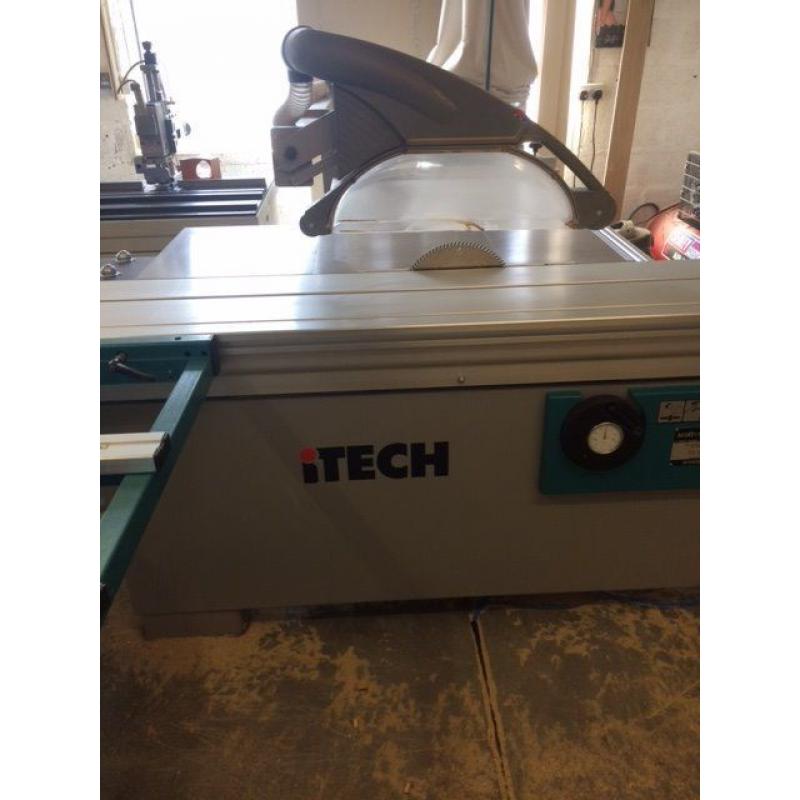

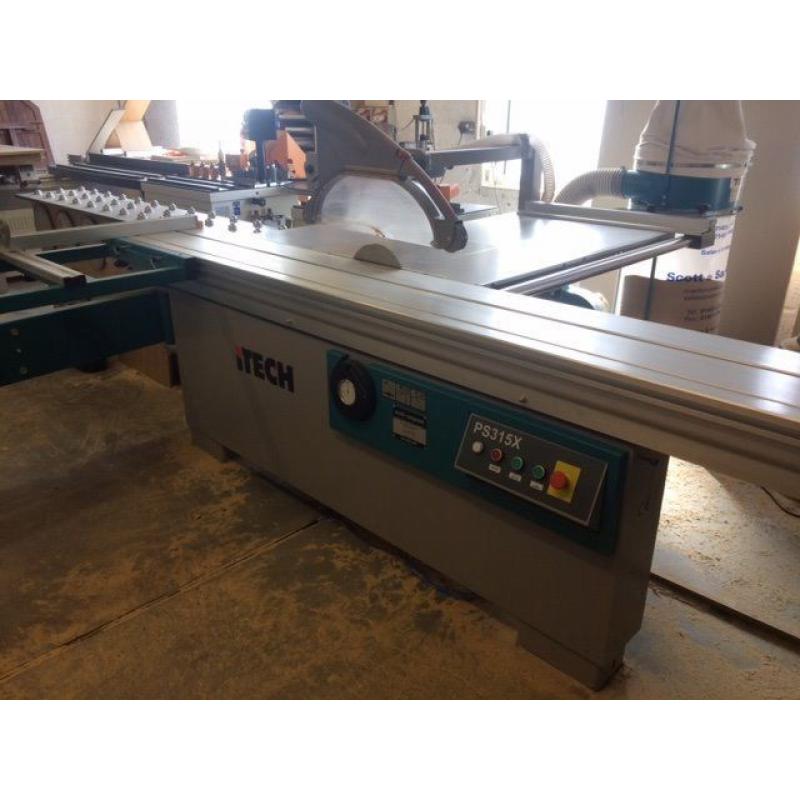

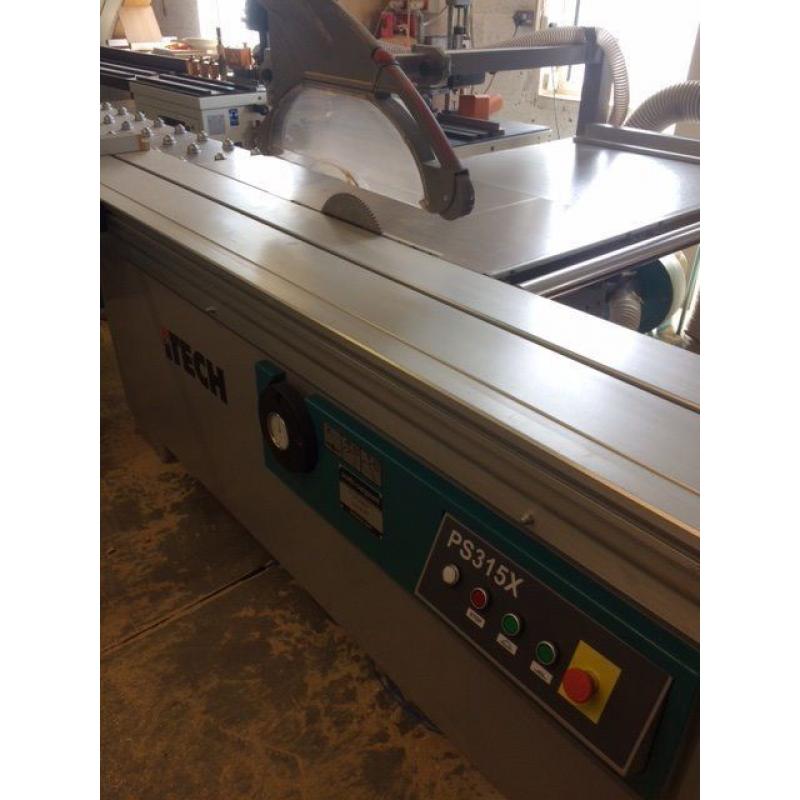

iTECH PS315x 3200 Sliding Table Panel Saw Plus iTECH DC001S 1 Bag Dust Extractor
* Main Blade Diameter 315mm
* Main Blade Speed 4000rpm
* Scoring Blade Diameter 120mm x d20mm
* Scoring Blade Speed 8000rpm
* Blade Tilt 0-45°
* Max Depth of Cut @45° 72mm
* Max Depth of Cut @90° 102mm
* Max Rip Capacity 1250mm
* Sliding Beam Size 3200x360mm
* Sliding Beam Stroke 3310mm
* Table Size 800(600+820)mm
* Dust Extraction Outlet 100mm&60mm
* Main Motor Power Output 4kW 3ph
* Scoring Motor Power Output 0.55kW
* Net/Gross Weight 460/580kgs
Extractor Information:
The cyclone's filtration system works by separating the waste from the airflow, diverting the waste into the collecting bag. The base is fitted with castors for mobility around the workshop. The 125 mm inlet is fitted with a twin branch 100mm adaptor, allowing connection to either one or two machines.
Will include a number of spare rip saw and fine tooth saw blades (not shown in pictures)
