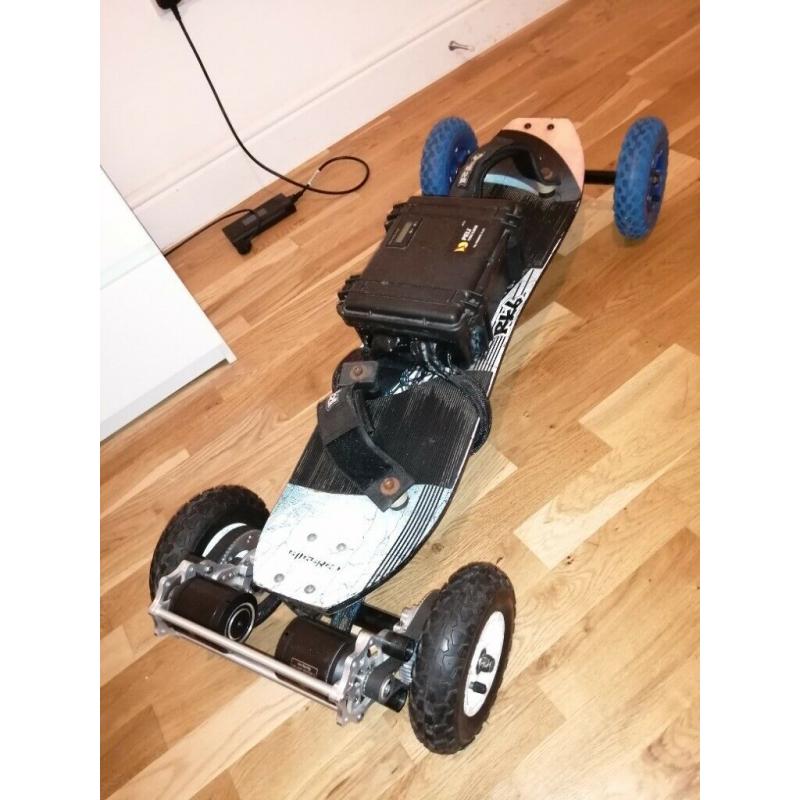

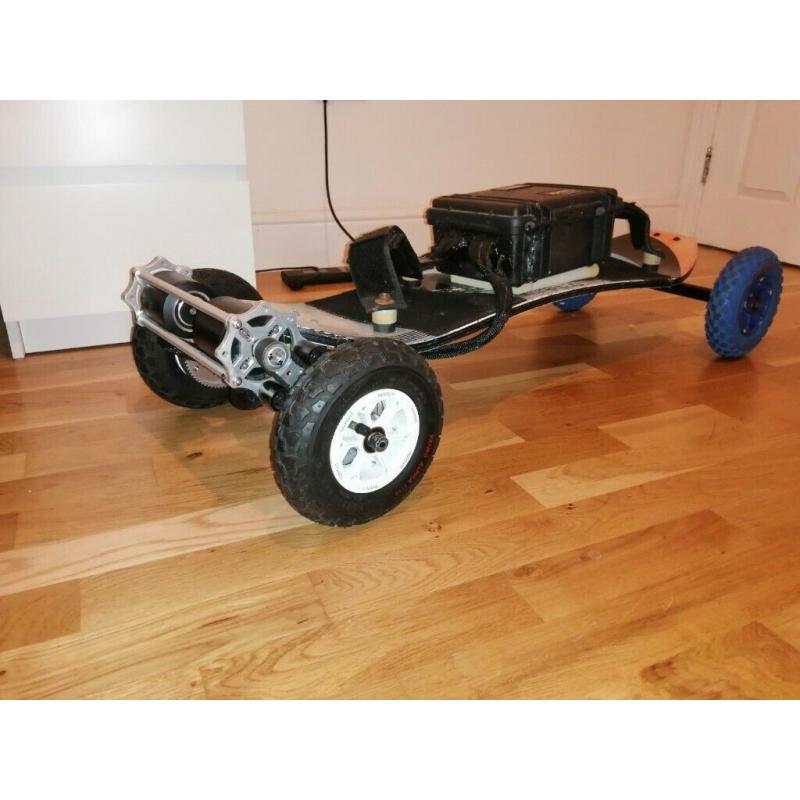

Custom Electric Skateboard (updated)

---

PART LIST(BRAND NEW) ONLY TESTED 2-3 MILES!!!

- box for electric system (peli case, waterproof)- 40?

- mounts : 2 x New Matrix II Pro Truck - 130 ?

- motors: 2 x Flipsky R 6374 190KV 3250W - 140 ?

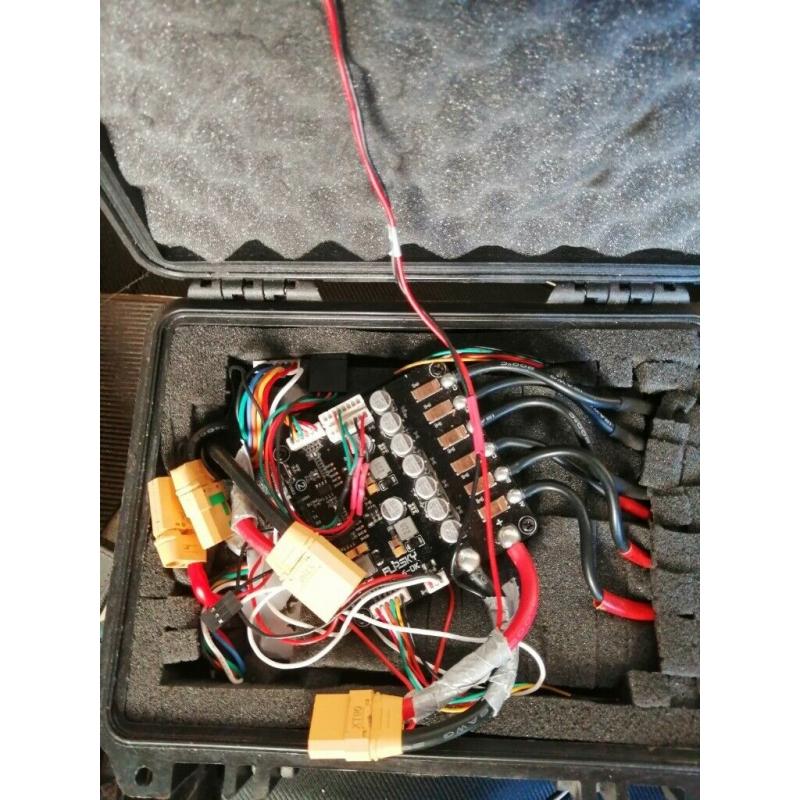

- electric system: Flipsky Dual FSESC6.6 (alu heatsink,Voltage: 8V - 60V (Safe for 3S to 12S LiPo) for the dual ESC
?Voltage spikes may not exceed 60V
?Current: 1 side: Continuous 100A single, total 200A , Instantaneous current 400A per single, total 800A for system instantaneous current.)- 180?
*you can setup everything on PC/Laptop, brake/acceleration, everything

- controller: Flipsky VX1 2.4Ghz ( 3 different mod, 1-light, 2-medium, 3-fast) - 30?

- Bluetooth module: 10 ? ( for android phone, you can check torque, acceleration, power, distance )

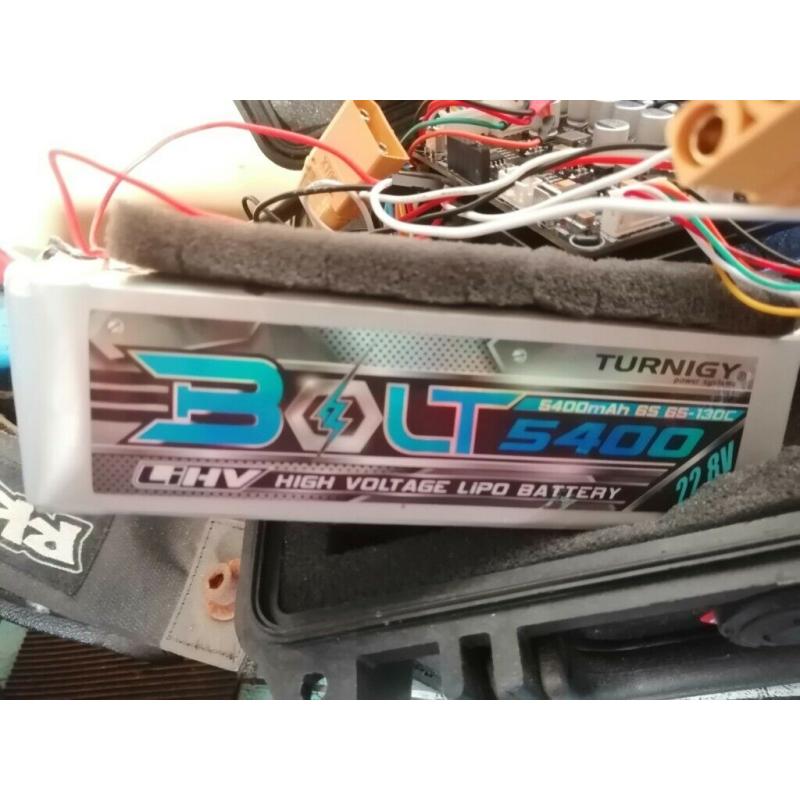

- batterry: 2 x Turnigy Bolt 5400mAh 6S 22.8V 65~130C High Voltage Lipoly Pack (LiHV) w/XT90 - ( 2 batteries setup in series connection= 5400mah,12s, 45.6 v) 180?

- motor mount: Janux Dual Drive Motor Mount System for MBS Matrix Pro II - 150 ?

- wheels: 4 x (primo alpha light + trampa wheels ) + 1 wheel( 2 bearings) total 8 bearings (1 bearings- can hold 120 kg) - 100 ?

- belt: Continental
-motor pinions: 15 teeth
-wheel pinions: 67
ratio: 4.187
-wheel diameter: 200 x 50 [mm]

- skateboard desk (used): 20?

Battery charger: ISDT D2 (dual / 200W) 120 ?

Total: 1000? +

***Software for calibration: ***VESC TOOL*** (picture attached)

# sell price - i don t know, every material, staff high quality

If you interested send message
